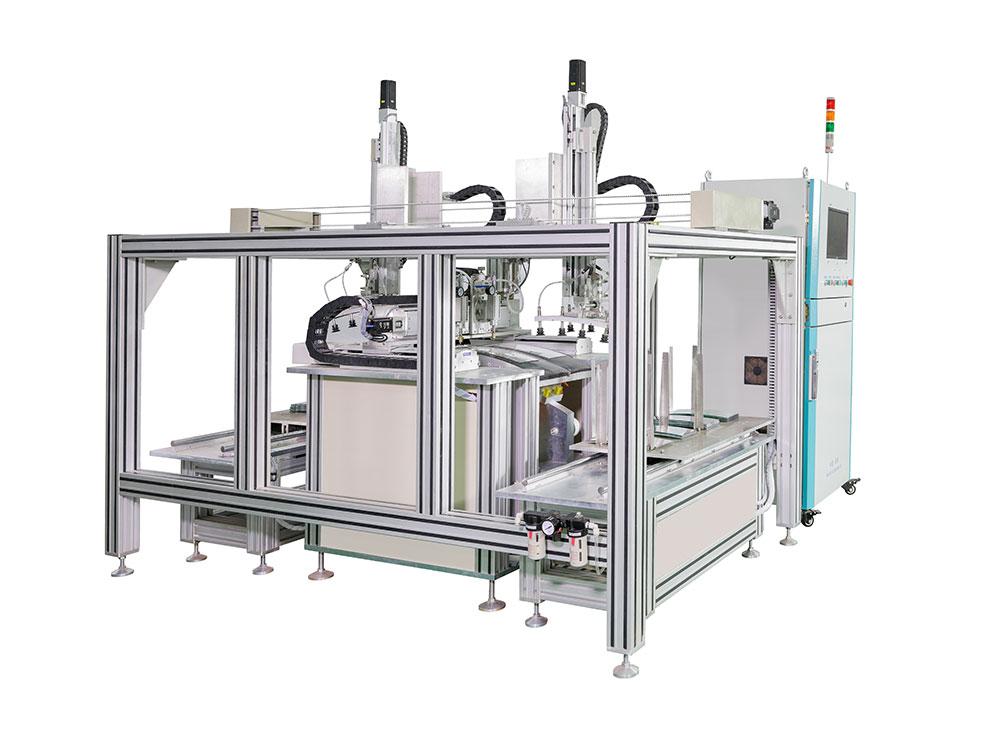

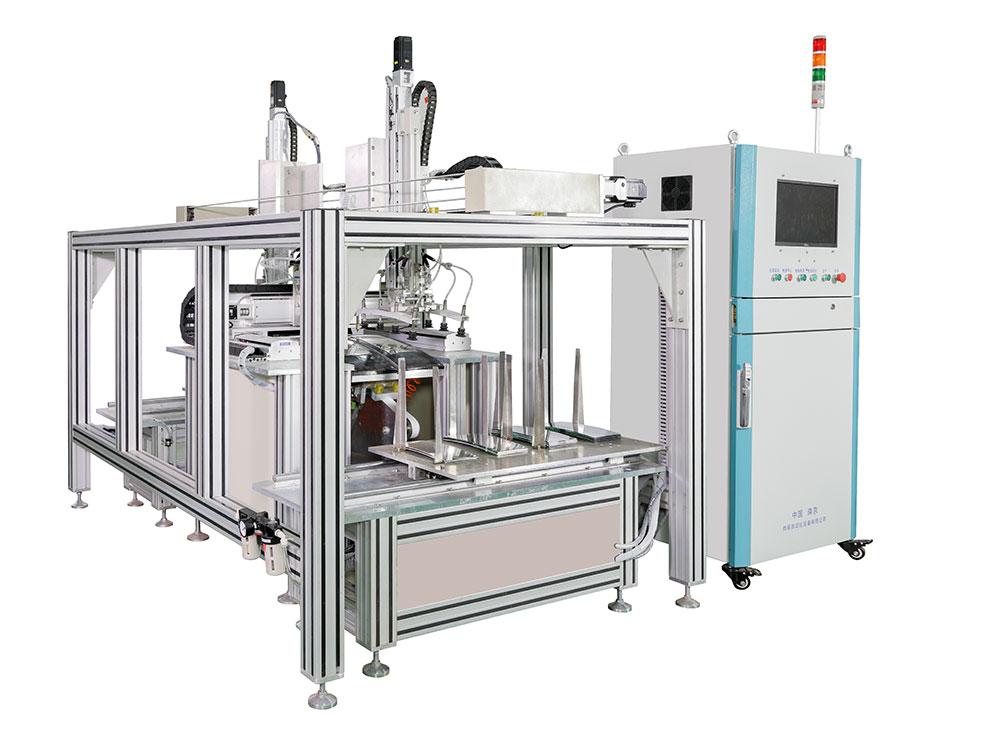

The automatic arc auto glass cutting machine is a special CNC cutting machine used to cut arc glass into special shapes, such as spherical glass for automobiles and motorcycles.

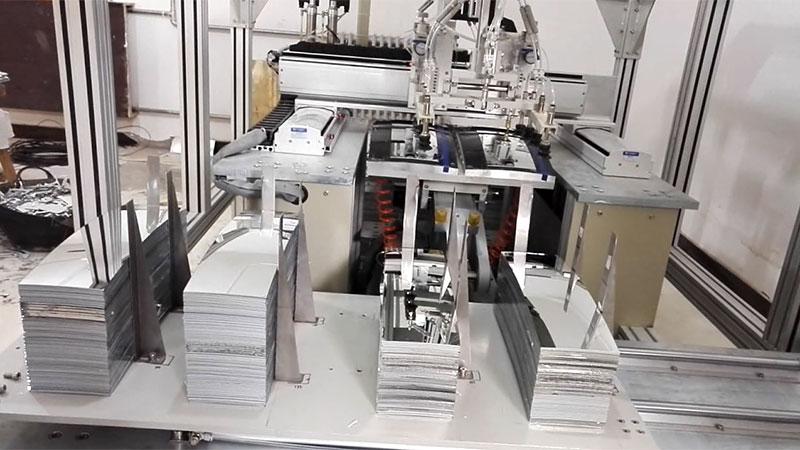

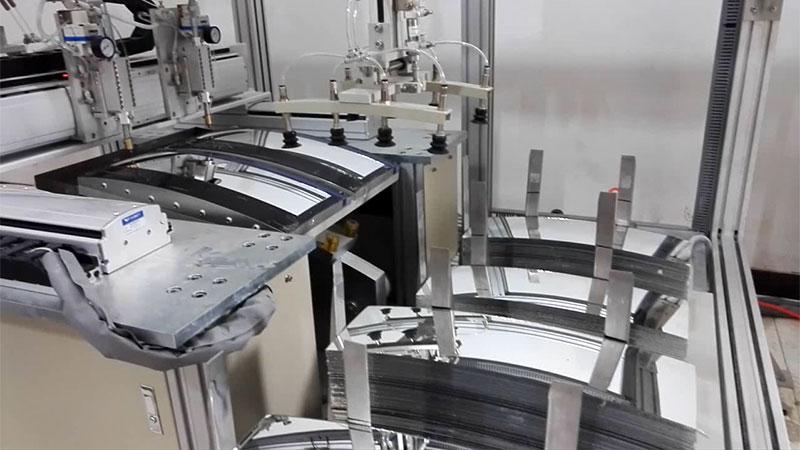

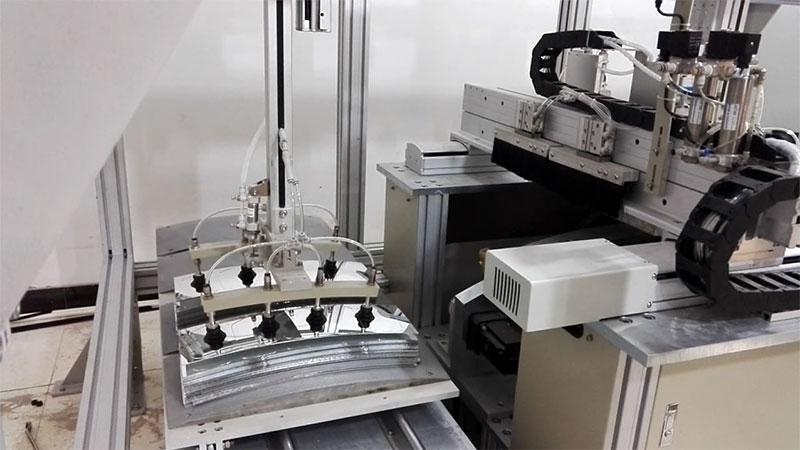

This CNC arc glass cutting machine uses computer control, and is equipped with special CNC cutting software and two sets of cutting components. The working process is fully automated, and the equipment can be used for multiple profile cutting on two large, curved glass pieces. It can also automatically pick and place glass.
|Control mode||Touchable screen + PLC + computer＋I/O control card＋Special CNC software|
|Size of raw glass||310*410mm|
|Input power supply||three-phase380V/3Kw|
|Input gas source||0.6-0.8MPa|
|Dimension||2500 x 1200 x 1800mm
Note: Cutting range, raw glass size and the voltage level of the input power supply can be customized according to your requirements.

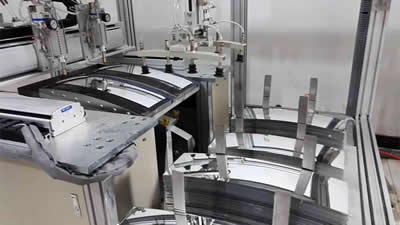

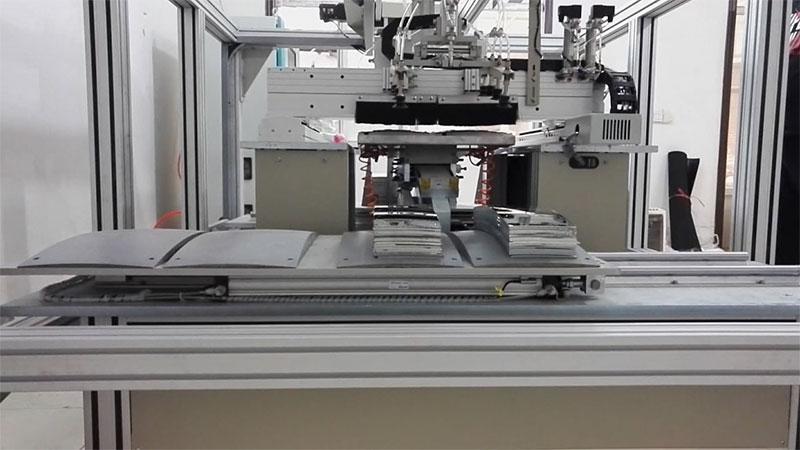

1. The cutting platform uses a curved wobble cutting template in order to ensure each piece of glass is in the same position, so as to achieve a high cutting precision.
2. Two pieces of glass can be cut simultaneously. The cutting range is extremely large, and the cutting speed is fast.
3. The cutting speed can be automatically adjusted. Deceleration is done at a sharp angle, with acceleration in a large arc or straight line.

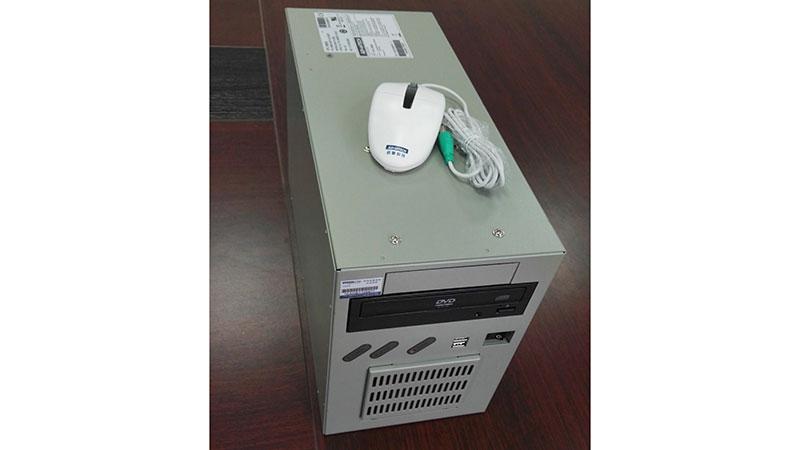

4. The glass cutting equipment uses an industrial computer and CNC special cutting software to achieve an accurate and stable cutting size.

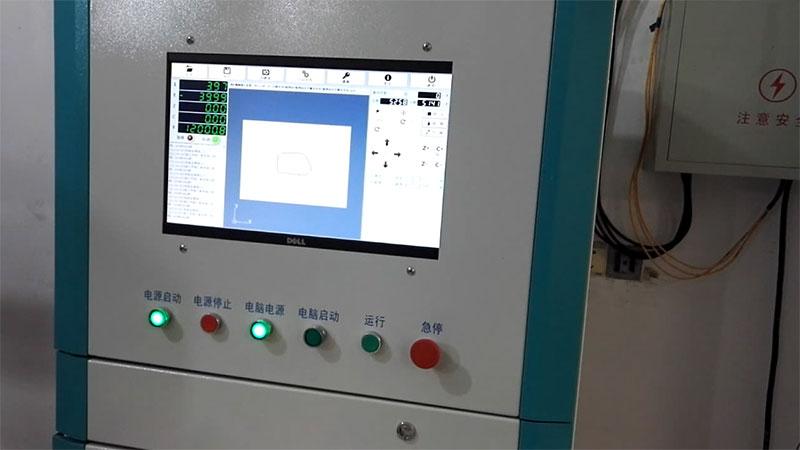

5. The system software is easy to learn and the working parameters can be set directly in the interface. Each program can be saved, making later modification and graphic recall easy. This equipment also features a counting function.

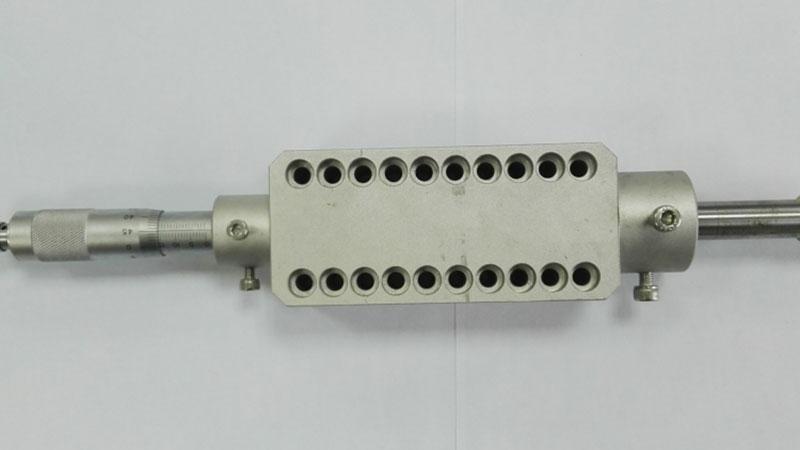

6. The gantry structure achieves precision control of the cutting pressure. The cutting depth can be adjusted in order to achieve the same cutting depth across each area.
7. Highly automatic, simple to operate, complete protection functions and easy to maintain

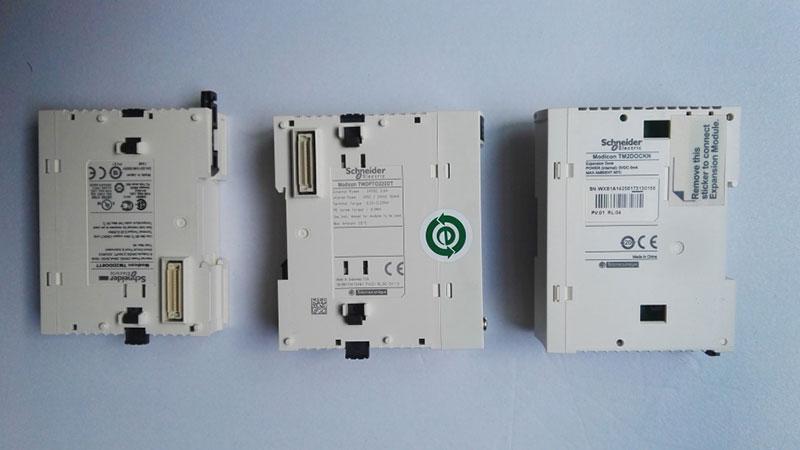

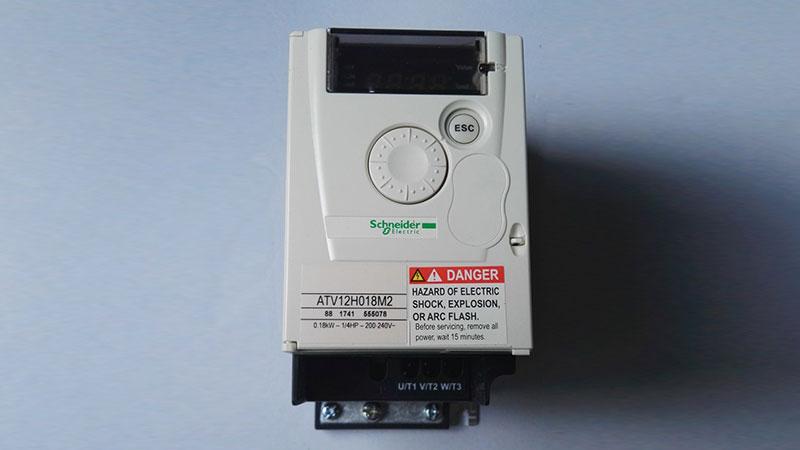

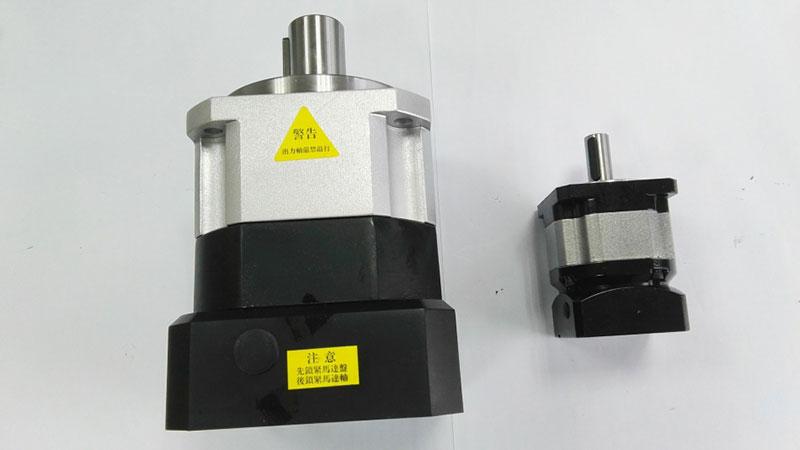

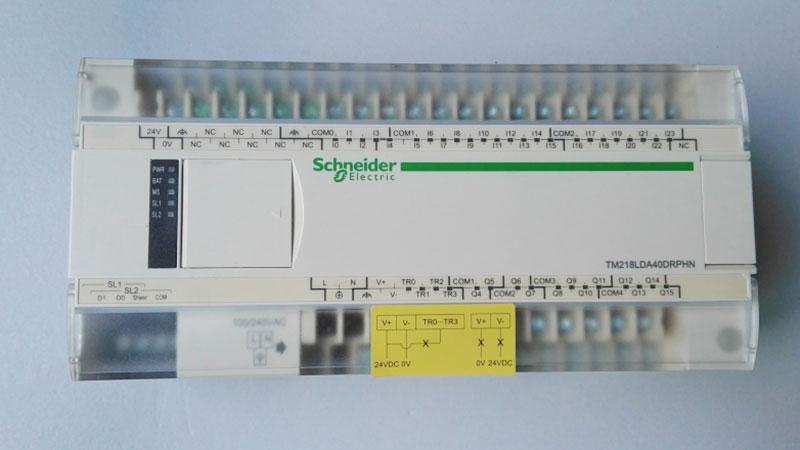

8. The cutting machine is equipped with a high precision ball-screw, high speed servo motor and precision pneumatic components, all of which are supplied by well known brands, including HIWIN (Taiwan), AIRTA (Taiwan), YASKAWA (Japan), SMC (Japan) and SCHNEIDER(France) in order to achieve a reliable quality and excellent stability.
Besides the automatic arc auto glass cutting machine, Yetuo offers wide range of glass processing equipment for glass cutting, glass edging, glass chamfering, glass washing, etc. Our company has complete equipment to manufacture quality automatic glass machinery for global customers.
