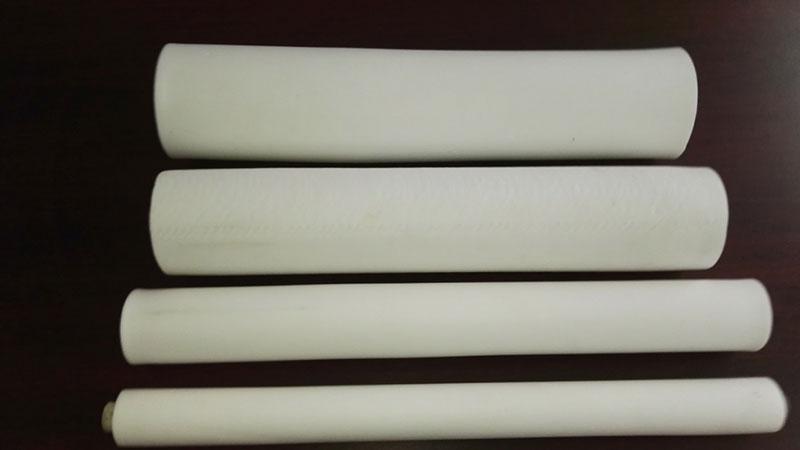

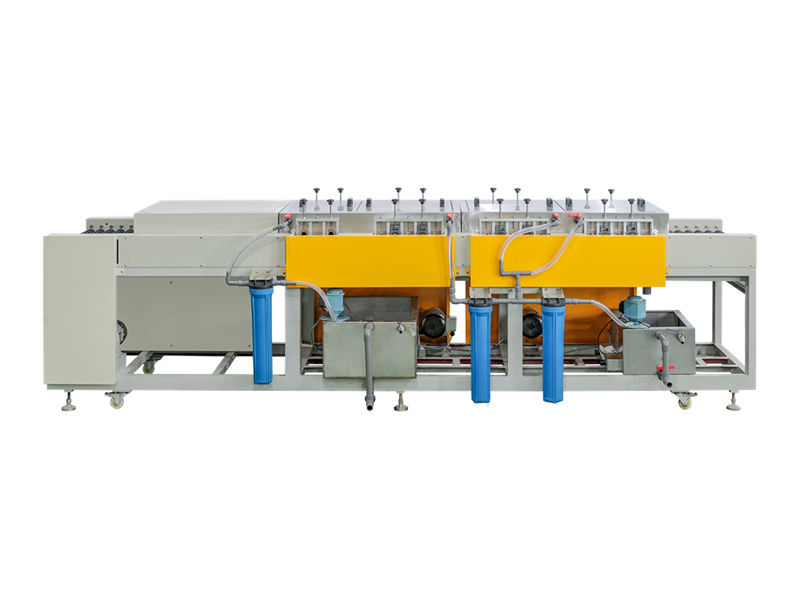

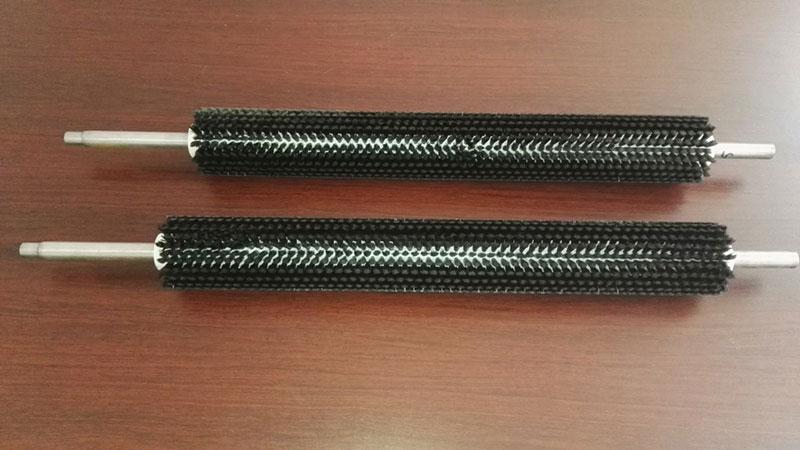

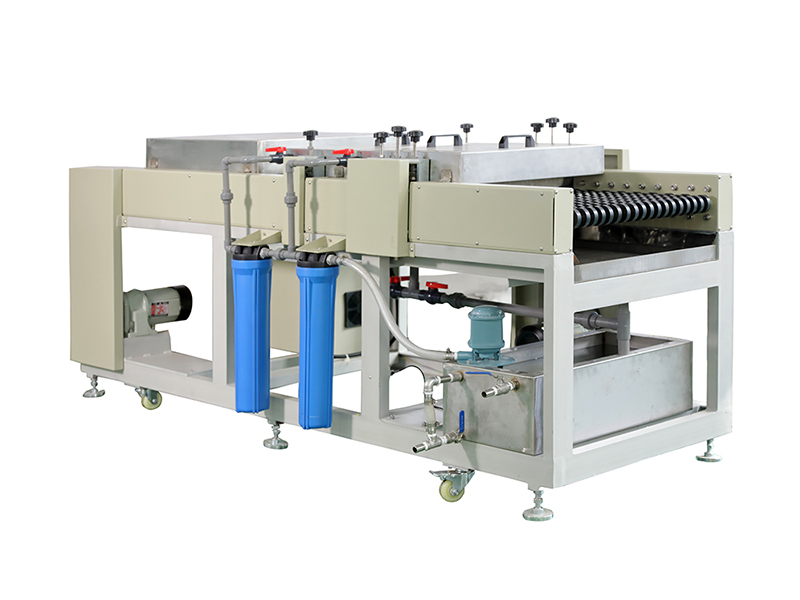

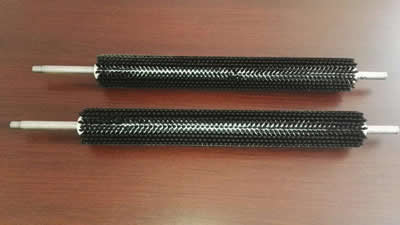

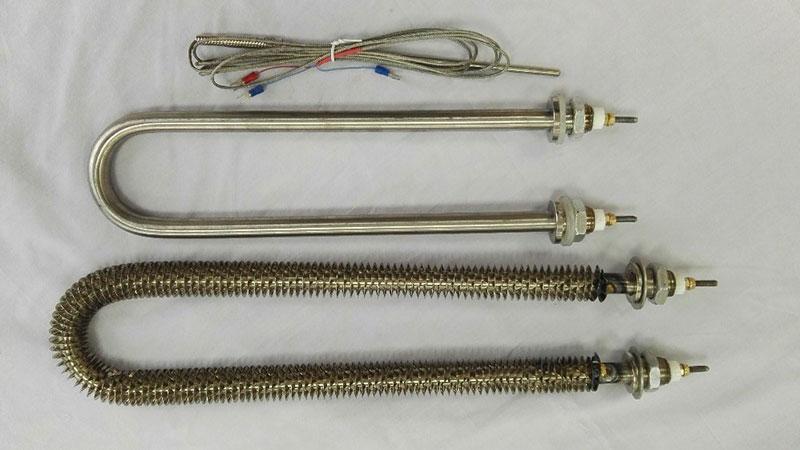

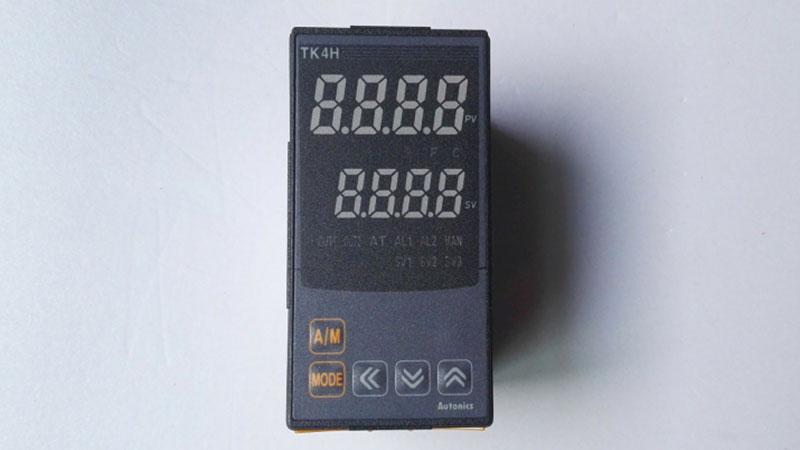

The glass washing machine is a special machine used to wash and dry a glass surface. It consists of the transmission, brush rolling, clean water rinsing, pure water rinsing, sponge rod water absorption, cold/hot air drying, electronic control system and a spray water circulation system. A glass sheet turning station can also be attached according to customer needs. We offer 3 glass washing machine types: pre-bending cleaning machine, pre-coating cleaning machine, and an end-way cleaning machine. Users can choose which one best suits their needs.
Cleaning steps: High pressure washing +3 brushing+ 4 sponge wiping + heat drying
Size (L x W x H) (mm): 4200×1200×850, this equipment can be customized to meet special customer requirements.
Cleaning steps: 3 brushing+ 4 sponge wiping + heat drying
Size (L x W x H) (mm):3800×1200×850, this equipment can be customized to meet special customer requirements.
Cleaning steps: 1 brushing+ 2 sponge wiping + heat drying
Size (L x W x H) (mm):2450×1200×850, this equipment can be customized to meet special customer requirements.
|Loading glass width (mm)||≤750, can be customized to meet special customer requirements|
|Washing speed (m/min)||0.1-2 frequency regulation|
|Water pressure (MPa)||0.05-0.1; high pressure water jet 0.6-1|

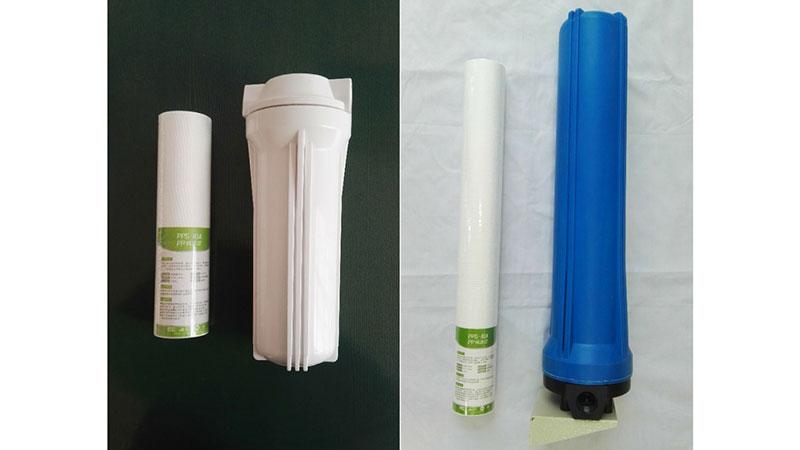

|Water source||Tap water + pure water|
|Input power supply||Three-phase 380V/4~6Kw, can be customized to meet special customer requirements|
Note: The loading glass width and input power supply voltage can be customized.
1. Any parts that come into contact with water are made of 304 stainless steel and a corrosion resistant material. The bearing is also made using stainless steel, ensuring long term, rust free usage.

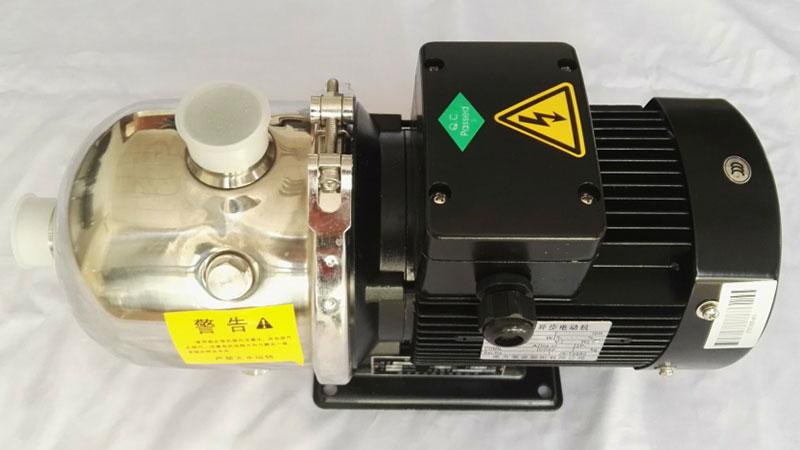

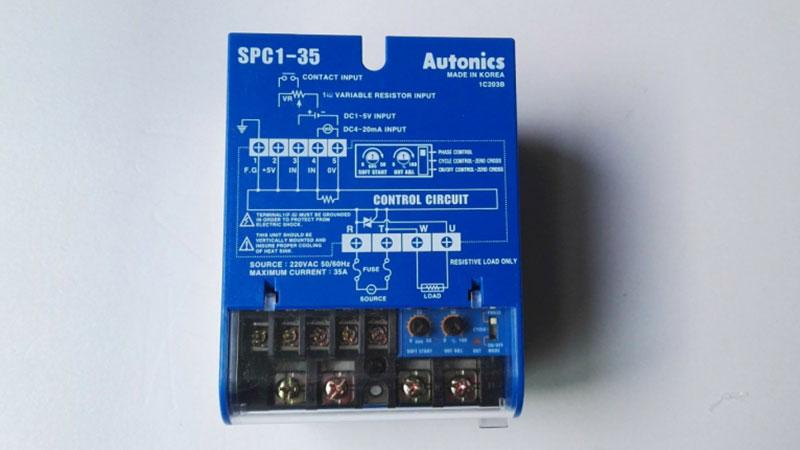

2. The main electrical and pneumatic components are provided by Schneider in France, and the speed regulating motor is provided by Yaskawa from Japan in order to ensure the reliable quality and work stability.
3. The machine structure is efficient, durable and easy to maintain.
Besides the glass washing machine, Yetuo offers wide range of glass processing equipment for glass cutting, glass edging, glass cleaning, etc. Our company has complete equipment to manufacture quality automatic glass machinery for making lots of mirrors and glass.
