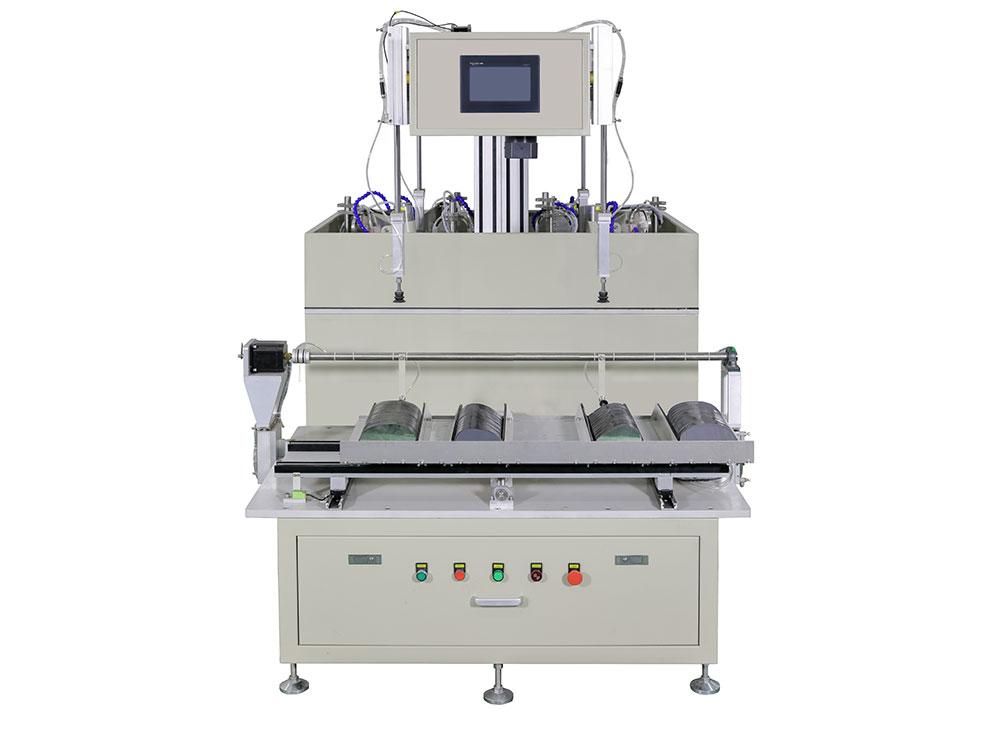

The 2-head glass grinding edge chamfering machine is a special machine used for grading the edge and chamfering of motorcycle mirrors, electric vehicle rearview mirrors and other rear view mirror types.

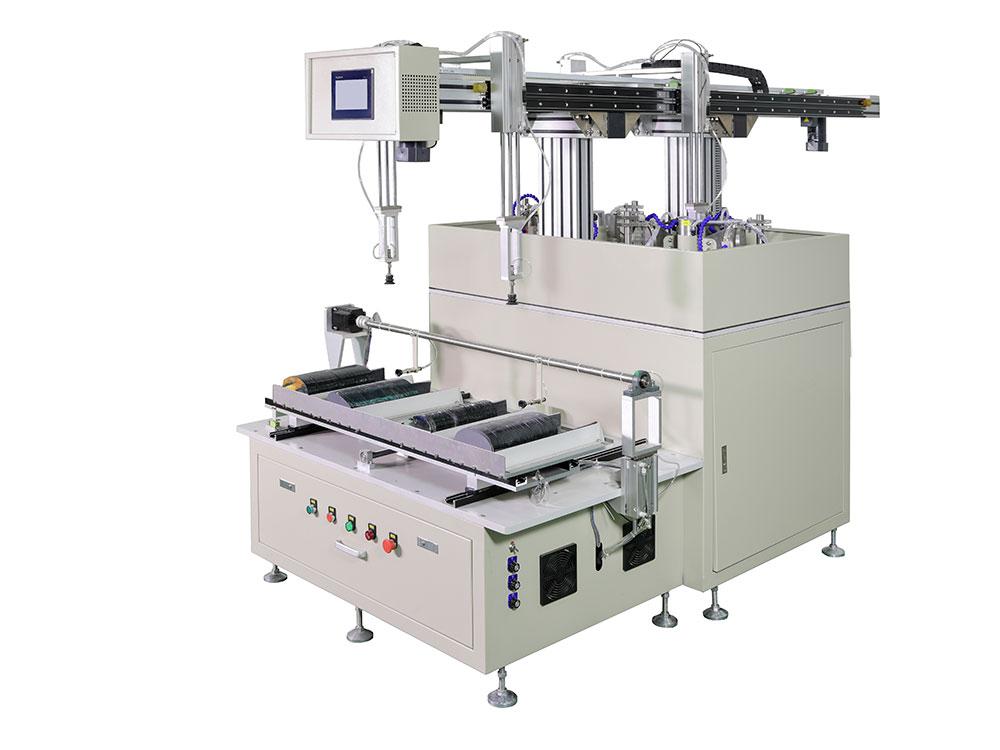

The 2-head glass grinding edge chamfering machine consists of two sets of independent three grinding wheel components, each of which consists of an automatic upper and low device, pick-and-place device, cooling, vacuum unit, and electric control system with a touch screen. This allows the equipment to achieve upper/lower grinding and chamfering of two pieces of glass at the same time.
|Grinding heads number||6|
|Lens size (m)||Length ≯200|
|Grinding wheel speed (RPM/min)||0－12000, frequency control|
|Vacuum pump||Liquid-ring vacuum pump|
|Input power supply||AC 3-phase380V 3Kw|
|Input gas source (MPa)||0.6－0.8|
|Dimensions (L x W x H) (mm)||1400×1700×1700
Note: The lens size and the voltage level can be customized according to your requirements.
1. Each station on the 2 head glass grinding machine has 3 grinding heads that operate simultaneously, making processing fast and efficient.
2. The equipment can automatically grab the glass, making it easy to operate.
3. The chassis and components that come into contact with water are made of 304 stainless steel, ensuring a long term rust resistance.

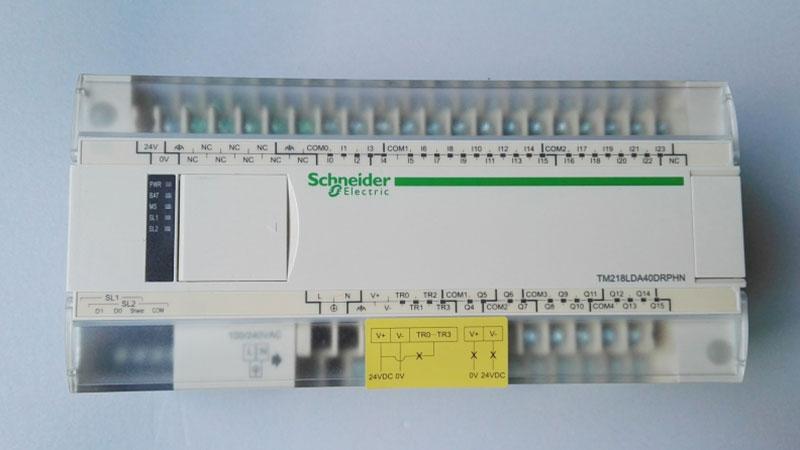

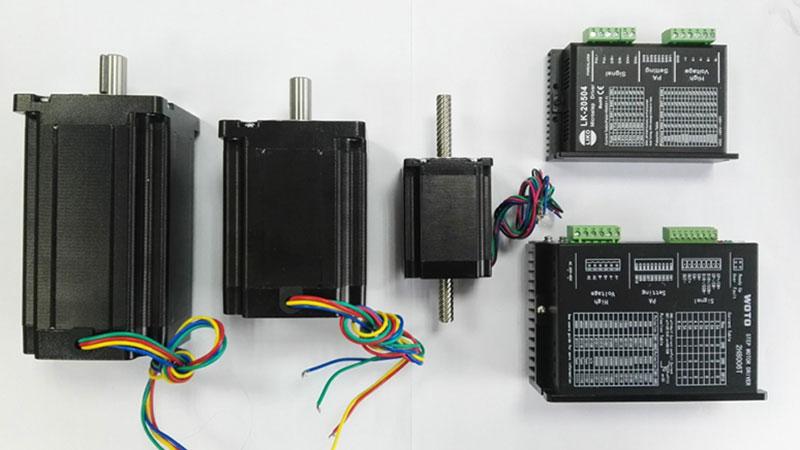

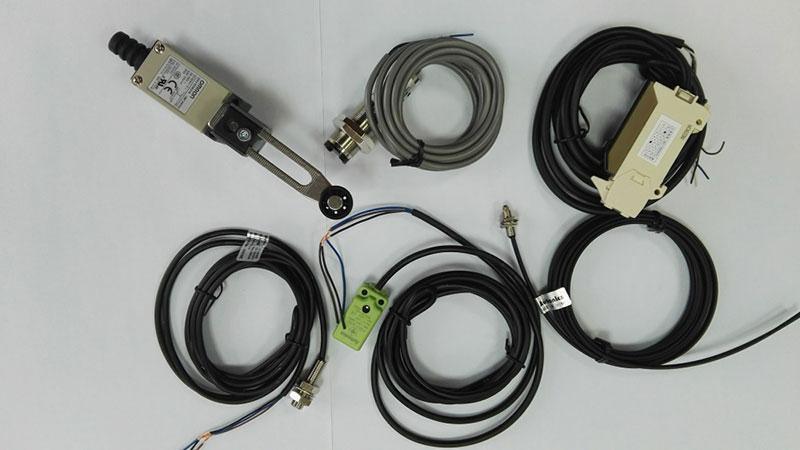

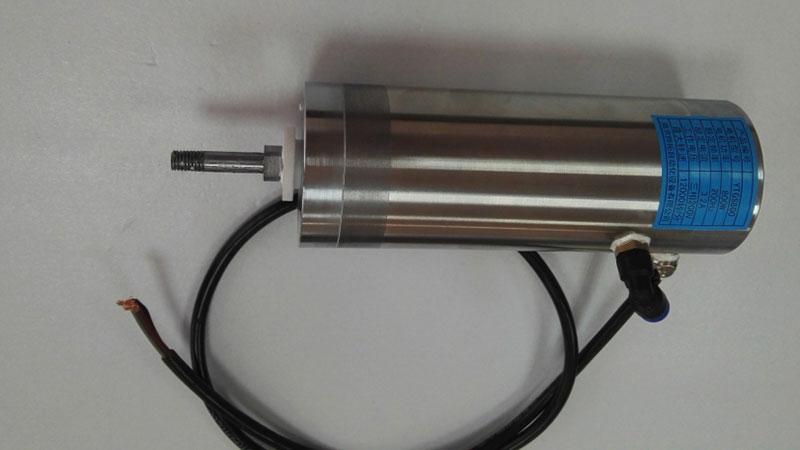

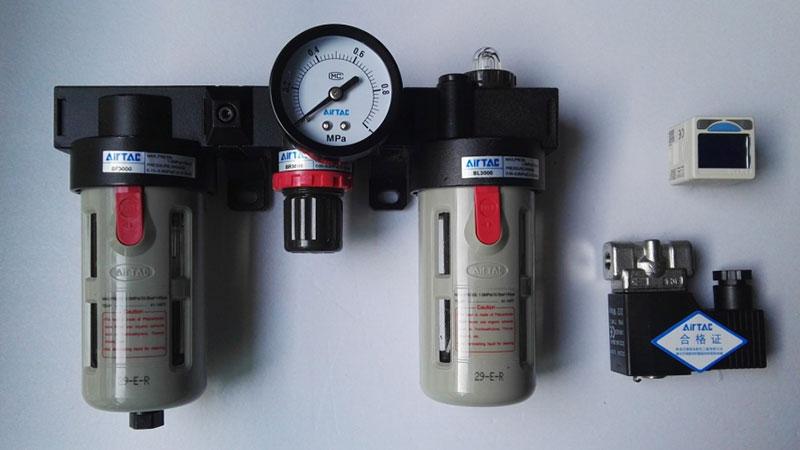

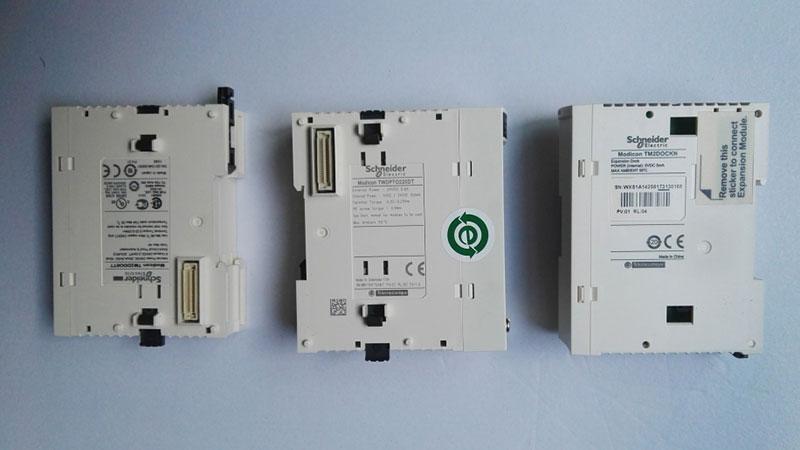

4. The main electrical and pneumatic components are sourced from internationally known brands, including Schneider, Yaskawa, and SMC. The equipment also uses a high speed grinding motor that ensures a reliable quality and outstanding work stability.
Besides the 2-head glass grinding edge chamfering machine, Yetuo offers wide range of glass processing equipment for glass cutting, glass edging, glass washing, etc. Our company has complete equipment to manufacture quality automatic glass machinery for making lots of mirrors and glass.
