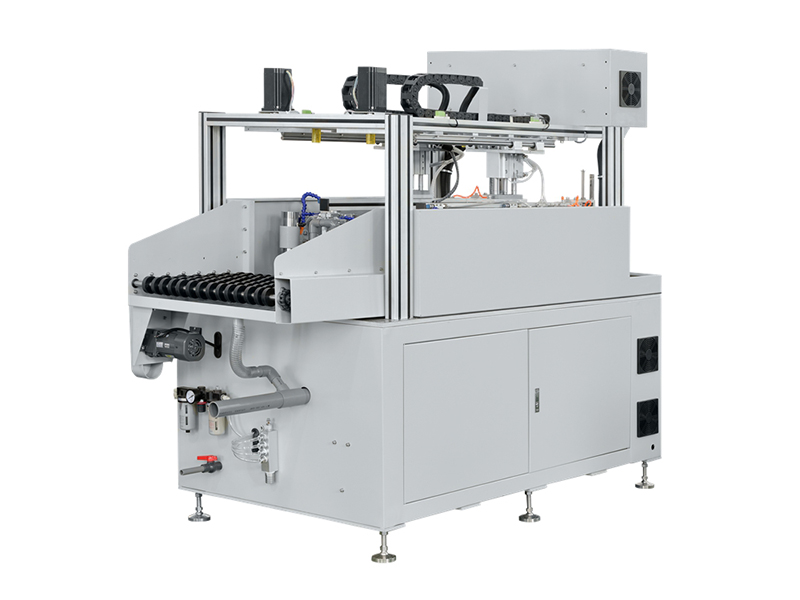

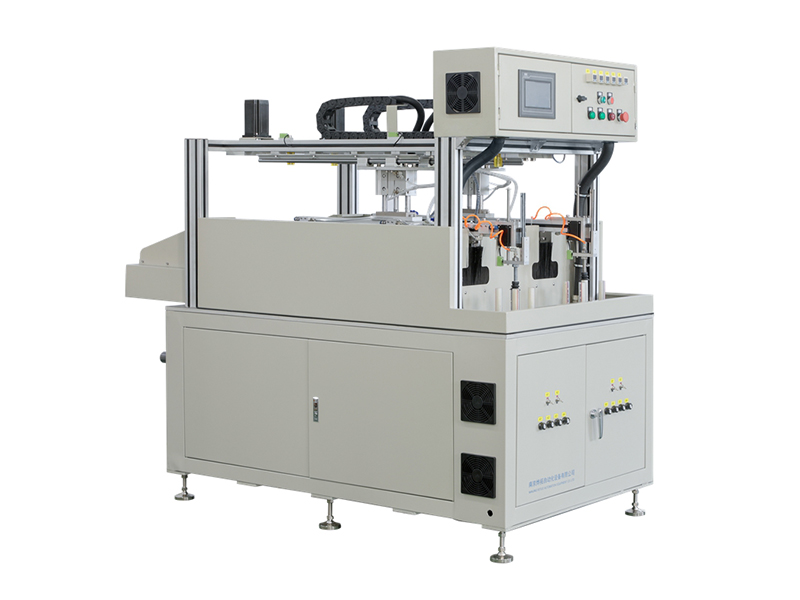

The YTMKS320 CNC shape glass edge grinding machine is used for grinding edges and chamfering glass with a small size and curvature, including car mirrors and motorcycle mirrors. This edge grinding machine is equipped with an auto feed mechanism and vacuum system, meaning the operator simply needs to place the stacked glass onto the locating area, where the glass will then be automatically processed, and automatically sent to the glass washing machine after processing.
This machine is equipped with 4 stations and 8 grinding heads. It provides two work modes users can switch between depending on their requirements.
|Grinding heads number||8|
|Grinding range||Glass length 60-300mm，other sizes can be customized|
|Grinding wheel speed||0-12000RPM VVVF|
|Production efficiency||Mode 1（CE＋CE） 18s/2 pieces |
Mode 2（CC＋CC） 24s/4 pieces;
|Control system||Touchable screen＋PLC|
|Input power supply||Three-phase 380V/5Kw, other voltage levels can be customized|
|Input gas source||0.6-0.8MPa|
|Vacuum system||Liquid ring vacuum pump|
1. It is designed with 4 stations and 8 grinding heads, and the feeding tray holds 50 pieces of glass, ensuring the high working efficiency.
2. Our unique technology ensures our equipment can process just about any size and curvature car mirror.
3. Use the touch screen to quickly set the parameters, including the grinding speed and rpm for different glass shapes but the same curvature. No other manual adjustment is needed.
