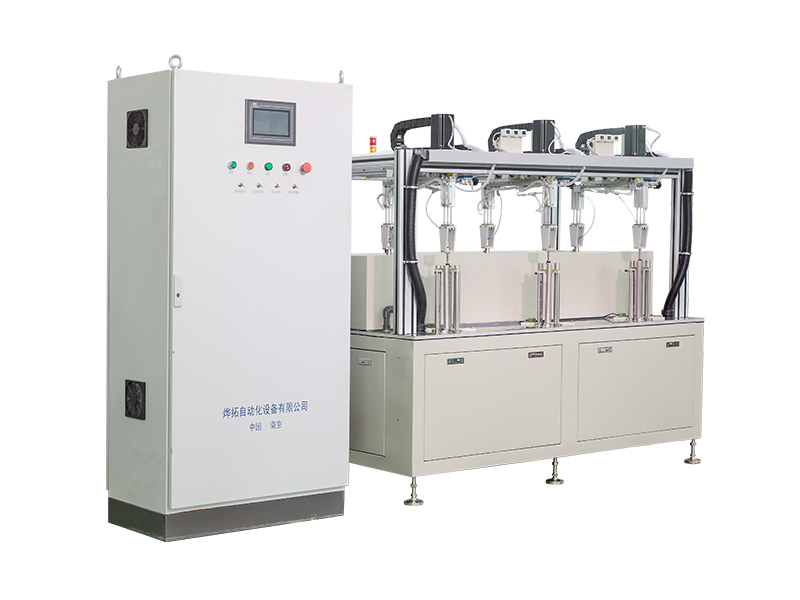

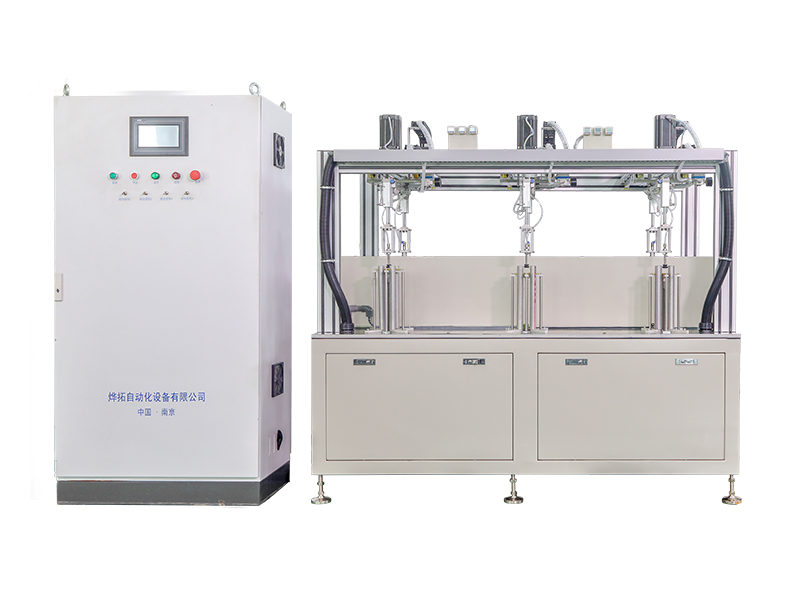

The YTMXPS100 CNC shape glass edge grinding machine is used for grinding edges and chamfering of glass with specific curvatures, such as wide-angle lenses and small lenses. This machine features 3 stations and 9 grinding heads, where each station grinds the edges of the glass, and chamfers both upper and lower sides of the glass simultaneously. It is also equipped with an auto feed mechanism and vacuum system, ensuring processed glass is automatically sent to the glass washing machine.Technical parameters
|Grinding heads number||9|
|Grinding range||Glass length 30-100mm, other sizes can be customized|
|Grinding wheel speed||0-12000RPM, Frequency control|
|Production efficiency||Edge grinding and chamfering, 3 pieces /16 seconds at a time|
|Control system||Touchable screen＋PLC|
|Input power supply||Three-phase 380V/6kw, other voltage levels can be customized|
|Input gas source||0.6-0.8MPa|
|Vacuum system:||Liquid ring vacuum pump|
1. This machine features 3 stations and 9 grinding heads, where each station grinds the edges of the glass, and chamfers both upper and lower sides of the glass simultaneously.
2. It can simultaneously feed 150 pieces of 2mm glass, while the fully automated process ensures the high efficiency.
3. Use the touch screen to quickly set parameters such as the grinding speed and rpm for different glass shapes but the same curvature. No other manual adjustment is needed.
