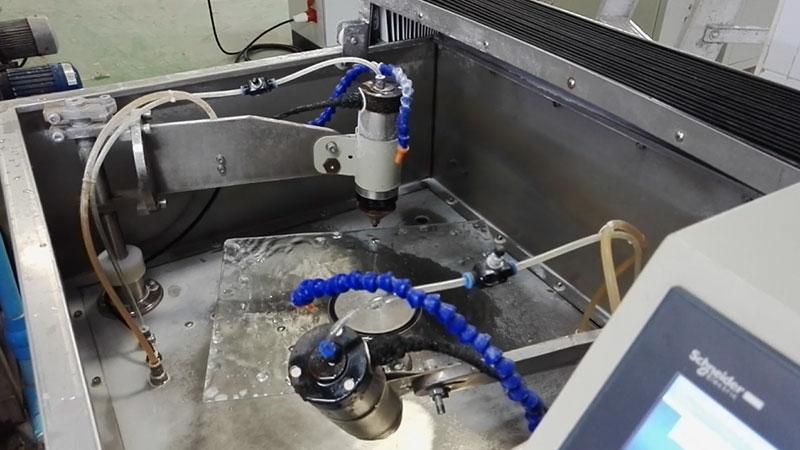

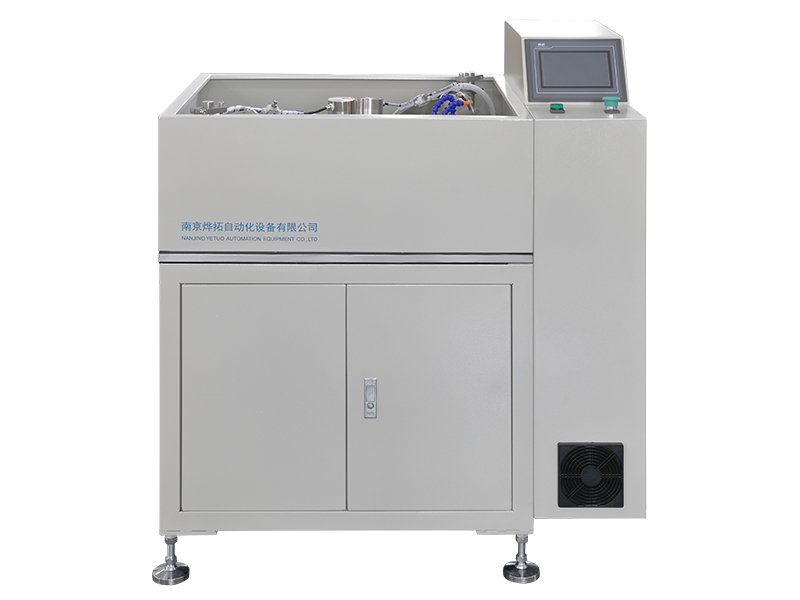

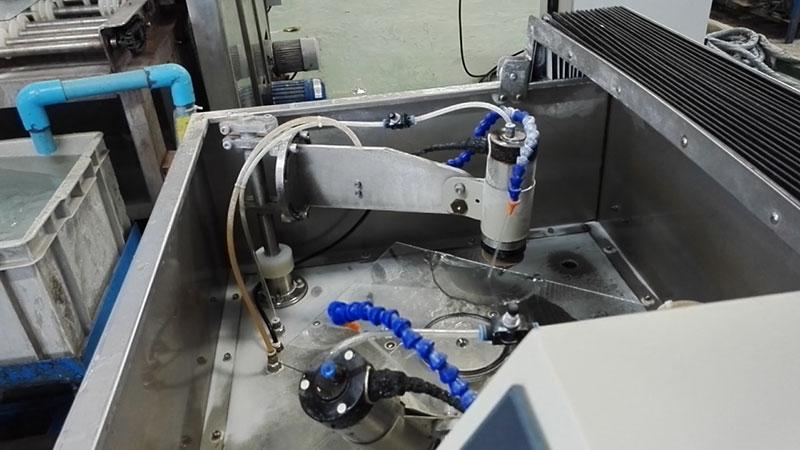

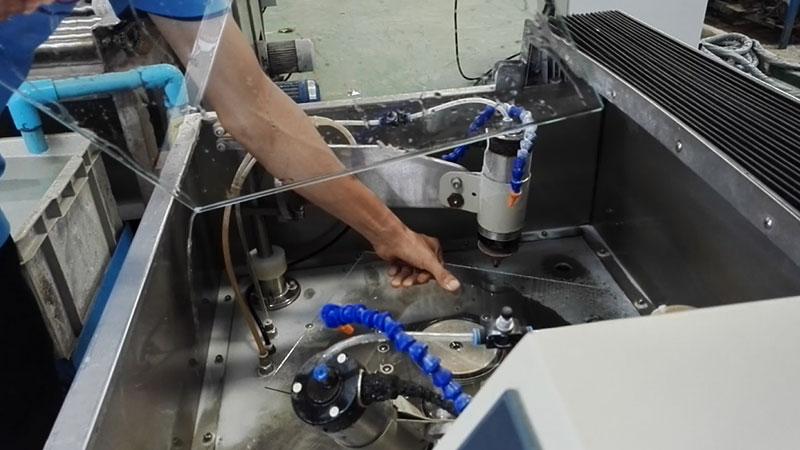

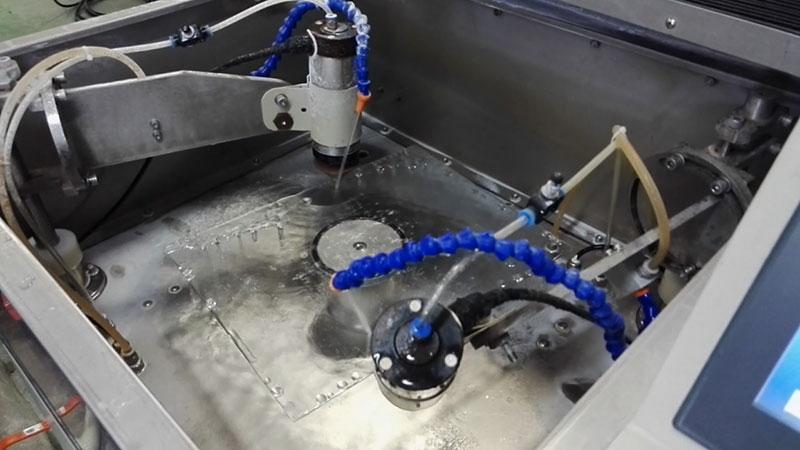

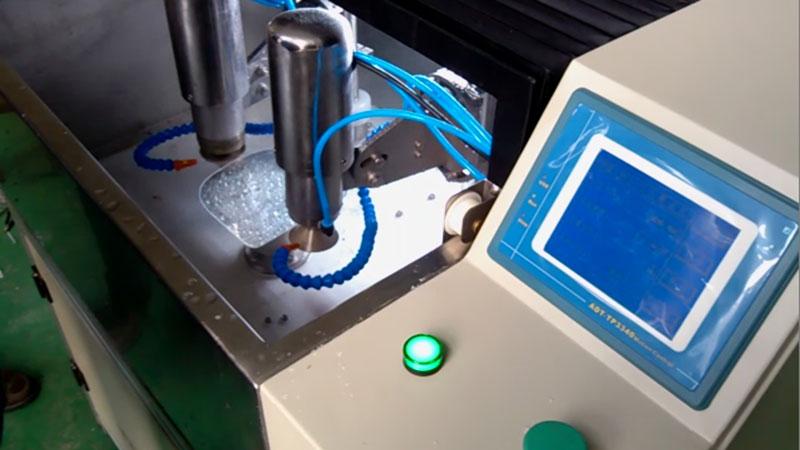

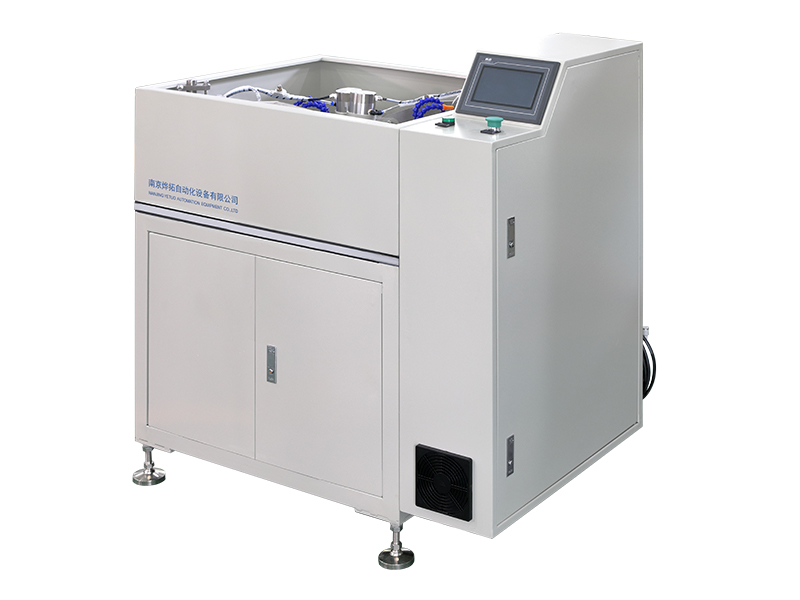

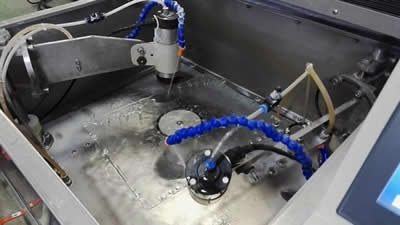

The semi-automatic glass grinding edge chamfering machine consists of a grinding, cooling and electronic control system. After inputting the grinding parameters, loading the glass onto the suction component, and pressing the operation button, the vacuum sucker will rotate in order to allow the diamond grinding wheel to operate. Cooling water is automatically added during the grinding process, and the grinding wheel will quickly leave the lens after the end processing is complete. Various functions such as grinding and chamfering can be achieved according to changes in different diamond grinding wheels.
|Grinding wheel speed (rpm/min)||0-12000, frequency control|
|Lens speed (circle/min)||0-10, continuous adjustable|
|Lens curvature (mm)||SR≥600|
|Lens size (mm)||Maximum length 450|
|Input power supply||220v/2.0kw|
|Input gas source (MPa)||0.6-0.8|
|Dimension (L x W x H) (mm)||700×1050×1080 |
Note: The lens size and voltage level can be customized based on customer requirements.
1. Streamlined structure, simple operation, and excellent grinding quality: The semi-automatic glass grinding edge chamfering equipment is used to grinding the periphery and chamfering of the upper and lower sections of the glass.
2. The work efficiency is significantly improved due to the elimination of the need to consider glass placement when placing the glass on the equipment.

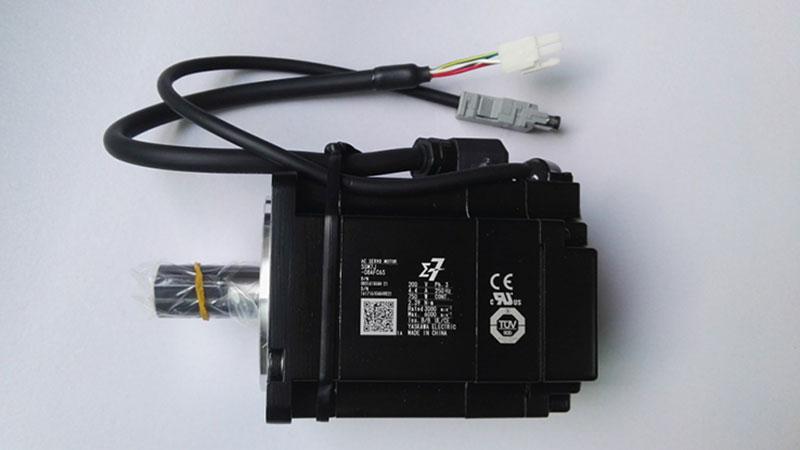

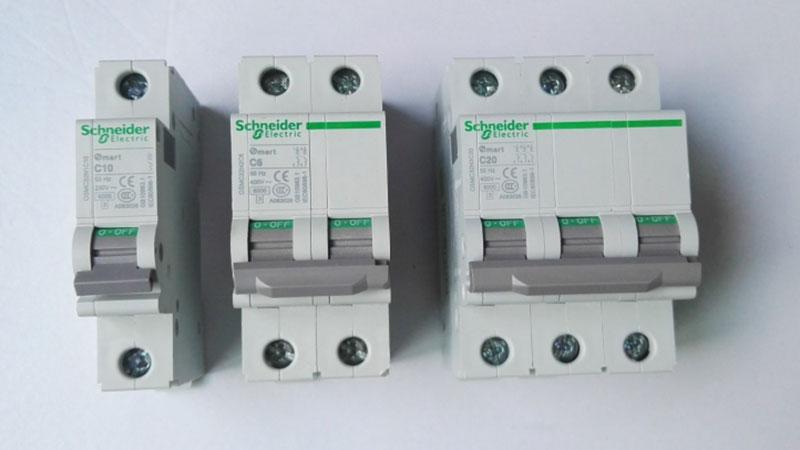

3. The main materials used are corrosive resistant stainless steel and aluminum alloy. Electrical components are sourced from internationally known brands, including Schneider and Yaskawa, thus ensuring steady, normal and long term operation with a low failure rate.
4. One operator can simultaneously work multiple pieces of equipment, and the grinding parameters are easily adjustable at any time. This equipment is easy to operate and maintain.
5. Less requirements for water and electricity.
Besides the semi-automatic glass grinding edge chamfering machine, Yetuo offers wide range of glass processing equipment for glass cutting, glass edging, glass washing, etc. Our company has complete equipment to manufacture quality automatic glass machinery for making lots of mirrors and glass.
