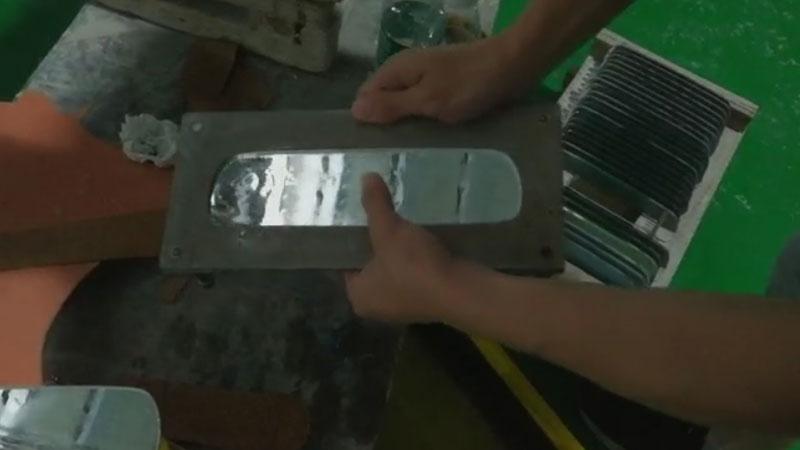

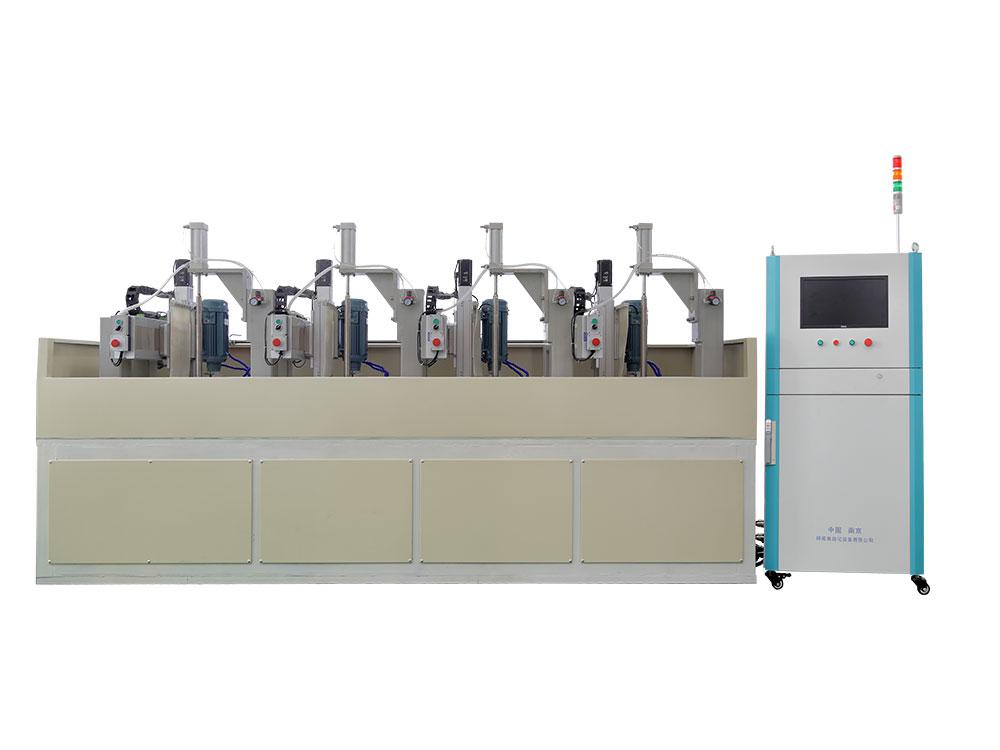

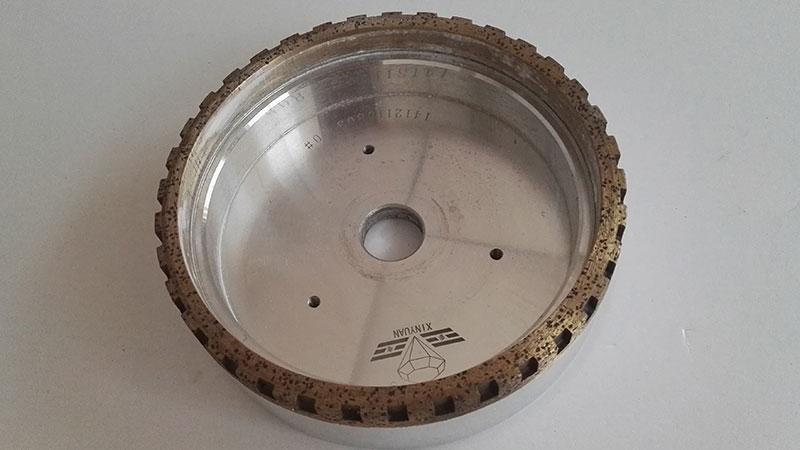

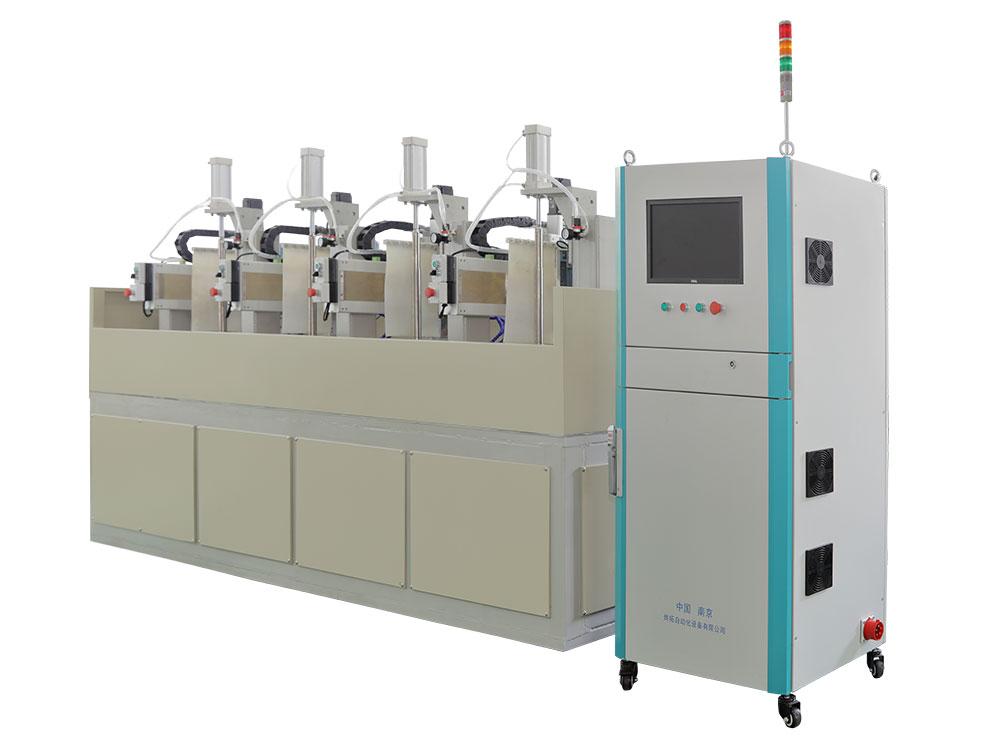

The 4-head CNC 3D glass grinding edge chamfering machine is a newly developed machine, with independent intellectual property rights. It is primarily used for 3D finish grinding, and is suitable for processing rear view mirrors without frames. It consists of 4 processing stations and an independent vacuum sucker and compression device. Each station can independently process different glass sizes. According to manual or automatic adjustment of the grinding wheel heads in order to prevent different rates of wear, the size of the glass on each station should be exactly the same.
|Station number||3D/4 station|
|Precision of edge grinding||≤±0.05mm/ｍ|
|Processing size||Short edge≮50mm，long edge≯300mm (rear-view mirror)|

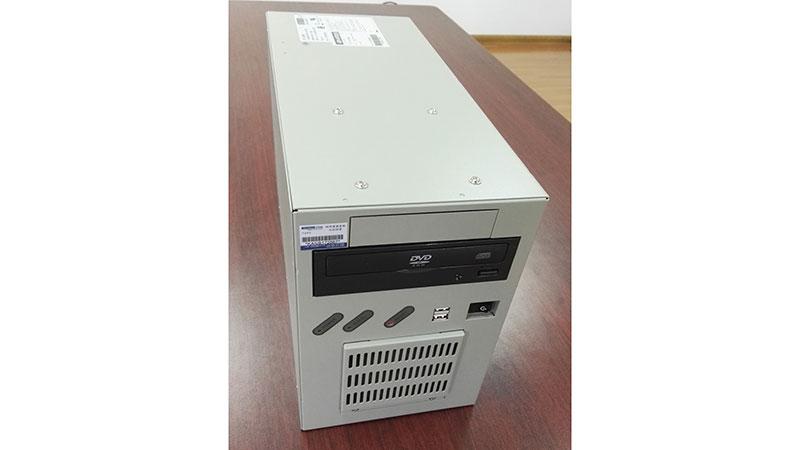

|Control system||Industrial computer + special CNC cutting software with four interface|

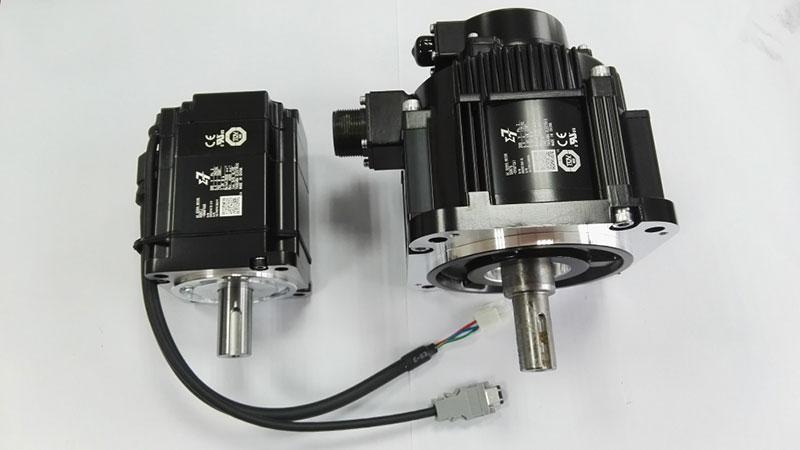

|Drive system||Precision ball-screw / servo drive|
|Input power supply||380V/8Kw|
|Input gas source||0.6-0.8MPa|
|Vacuum system||liquid-ring vacuum pump
Note: The processing size and the input power supply voltage level can be customized based on your requirements.
1. The grinding quantity can be accurately adjusted, and the machining dimensions of each work position is the same, thus allowing for a high precision and less errors.
2. The cutting speed can be automatically adjusted. Deceleration can be done at a sharp angle, with acceleration in a large arc or straight line.
3. The system software is easy to learn, and modification and recall of graphics is convenient, allowing the software to be used for processing of a variety of glass shapes.

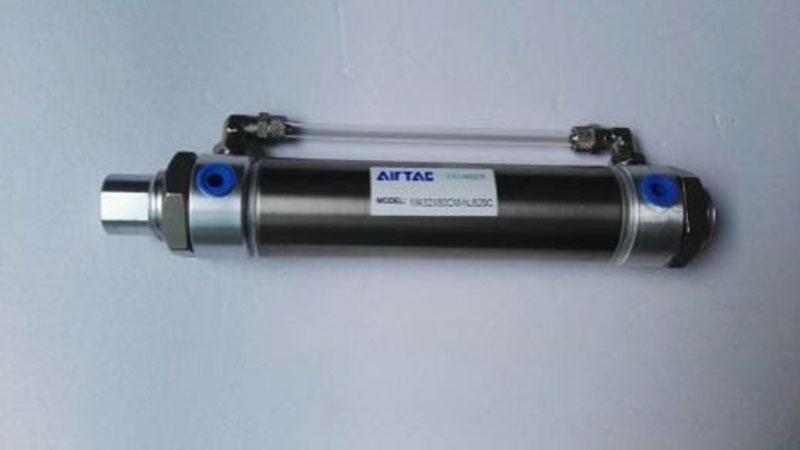

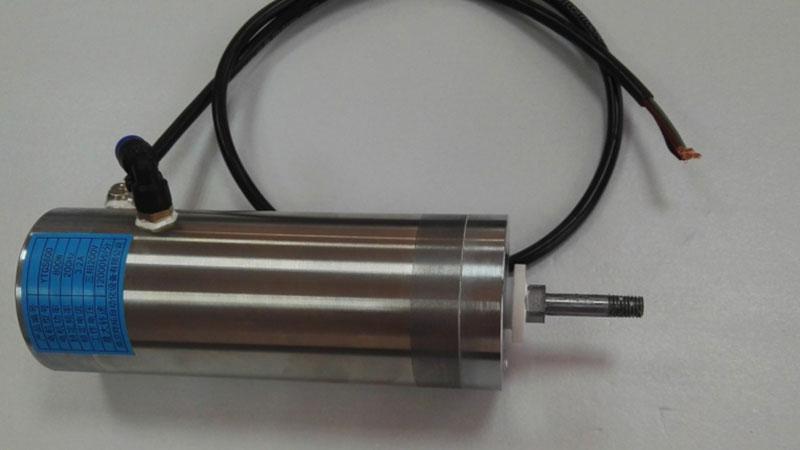

4. The main electrical and pneumatic components are sourced from internationally known brands, including Schneider, Yaskawa, and SMC. The use of a high speed grinding motor also improves the quality and work stability of the equipment.
5. Components that come into contact with water are made of 304 stainless steel and erosion resistant material. The bearing is also made of stainless steel, thus ensuring a long term, rust resistant performance.
6. The machine’s mechanical rigidity is strong and durable, and with complete protection functions, easy to maintain.
Besides the CNC 3D glass grinding edge chamfering machine with four working station, Yetuo offers wide range of glass processing equipment for glass cutting, glass edging, glass washing, etc. Our company has complete equipment to manufacture quality automatic glass machinery for making lots of mirrors and glass.
