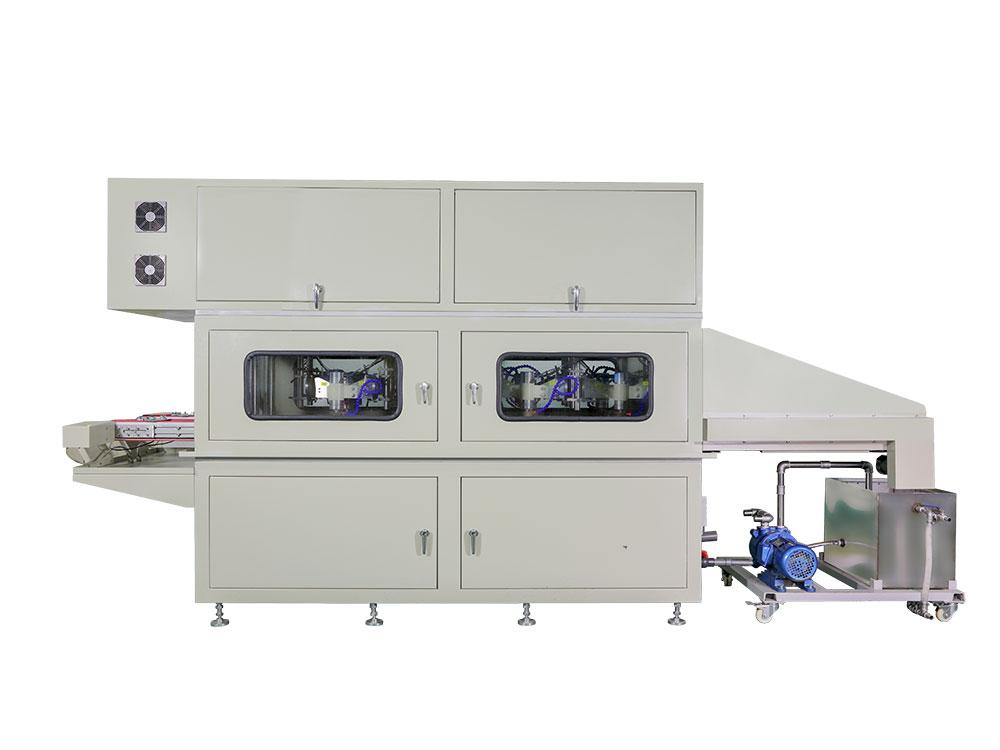

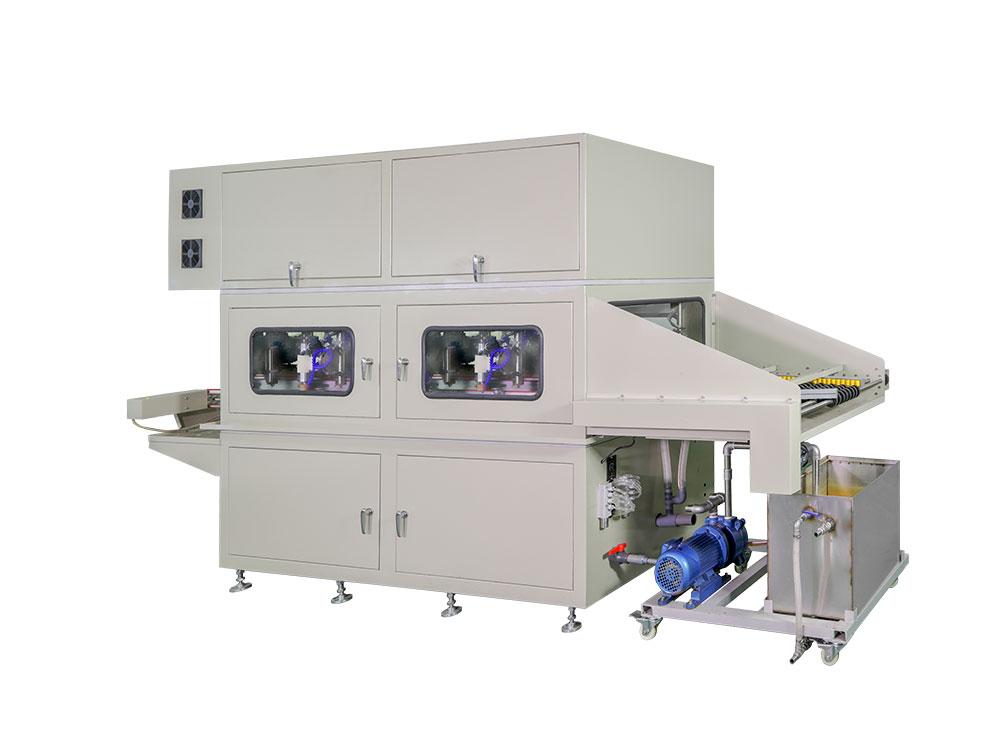

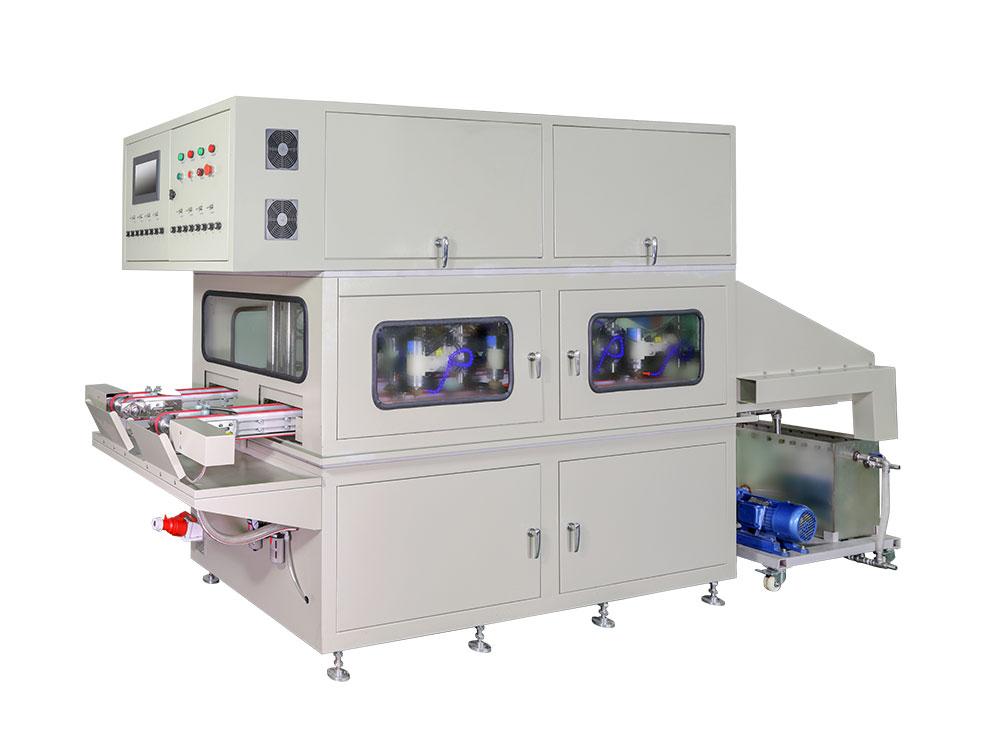

The car rear view mirror edge chamfering machine is a special machine used for upper/lower grading edges, and chamfering of automobile rearview mirrors and plate mirrors.

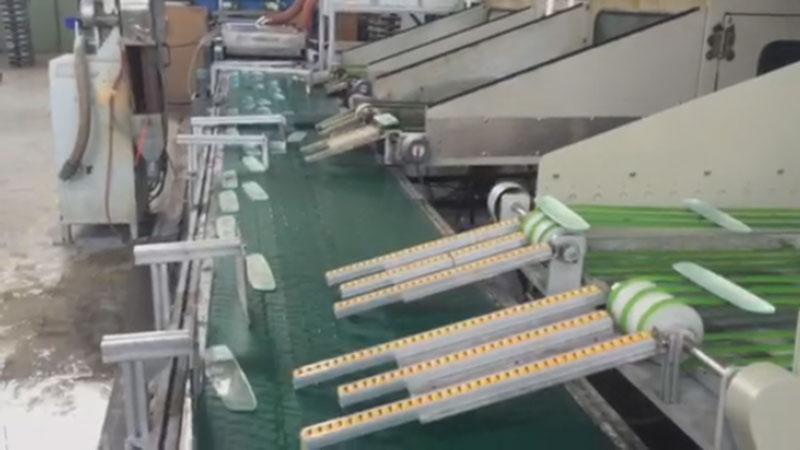

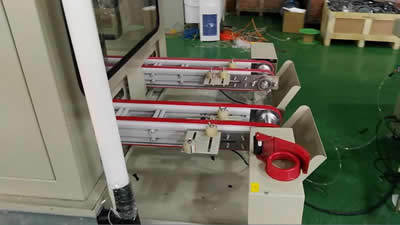

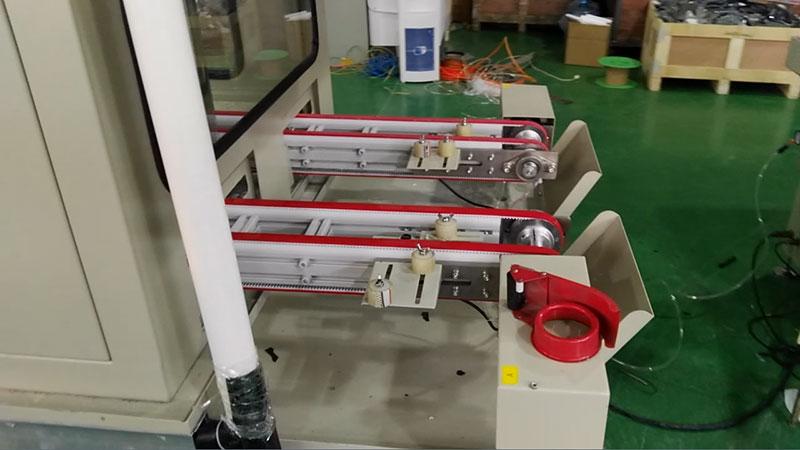

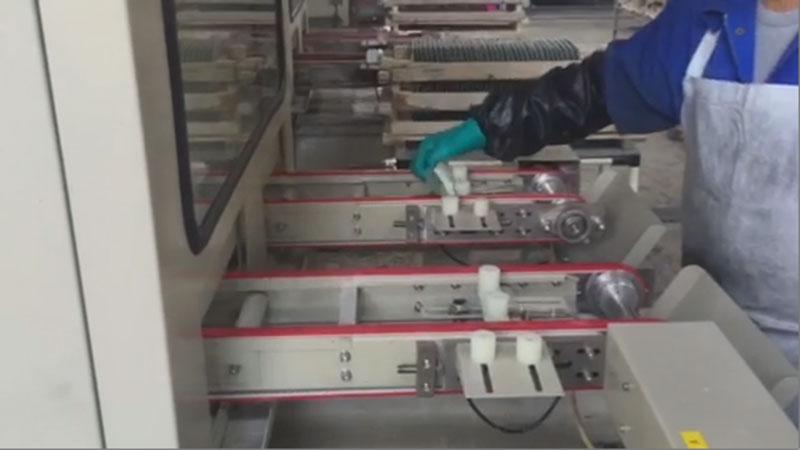

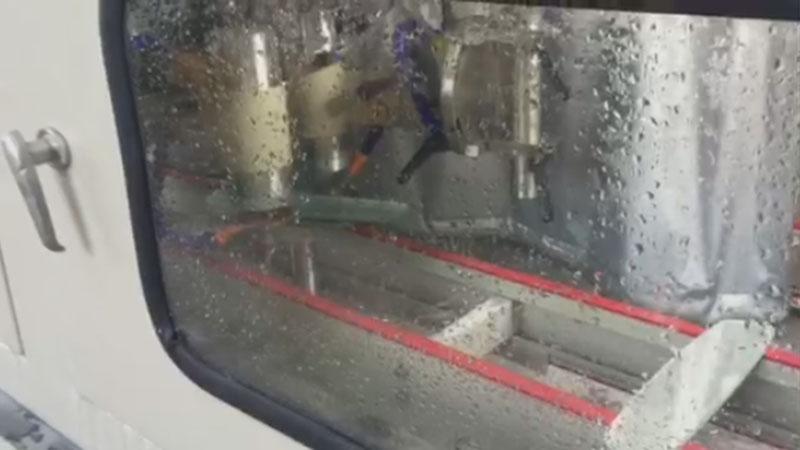

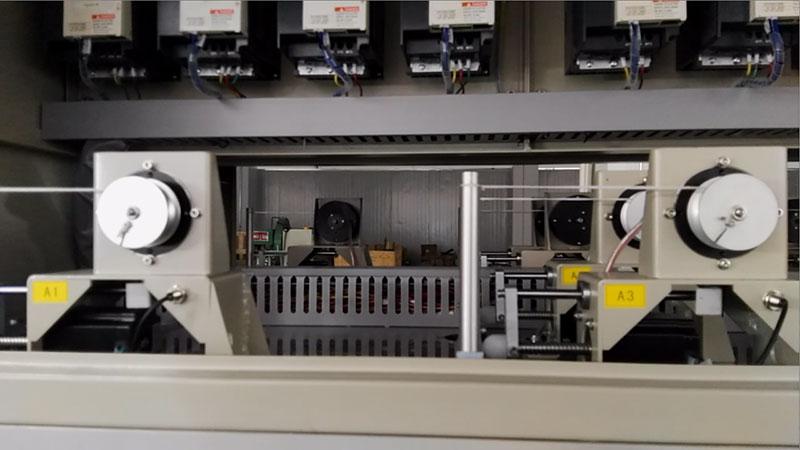

The car rear view mirror edge chamfering machine consists of A/B (two) lines, 8 suckers and 16 grinding heads, and combines locating, absorbing and conveying, edge-grinding, controlling, vacuum and a cooling system. Chamfering, edge grinding, fine grinding and fine chamfering processes can be set at each grinding head, and two pieces of glass can be processed simultaneously. With a few minor adjustments, 4 pieces of glass can be processed simultaneously.
|Grinding heads number||16|
|Glass length (mm)||60-280|
|Glass thickness (mm)||1-4|
|Grinding wheel speed (rpm)||Frequency control 2000-10000|
|Control system||Touchable screen＋PLC|
|Vacuum system||Liquid ring vacuum pump|
|Input power supply||Three-phase 380V/8kw|
|Input gas source (MPa)||0.6－0.8MP|
|Dimension (L x W x H) (mm)||4000x1100x2000
Note: Glass length, thickness and the voltage level can be customized according to your requirements.

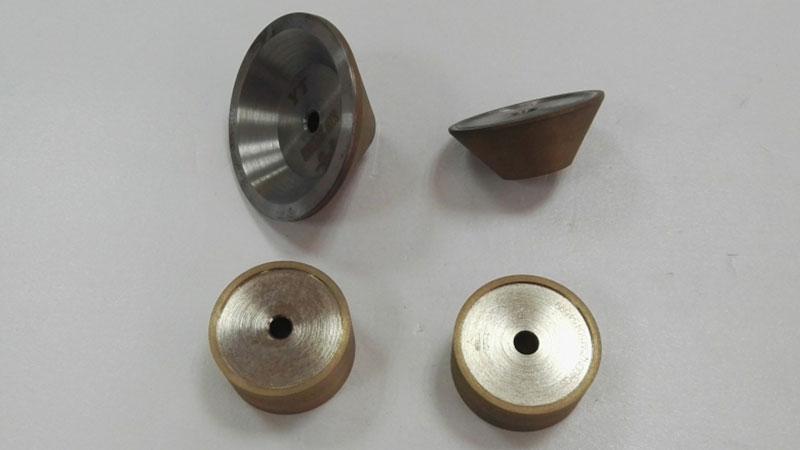

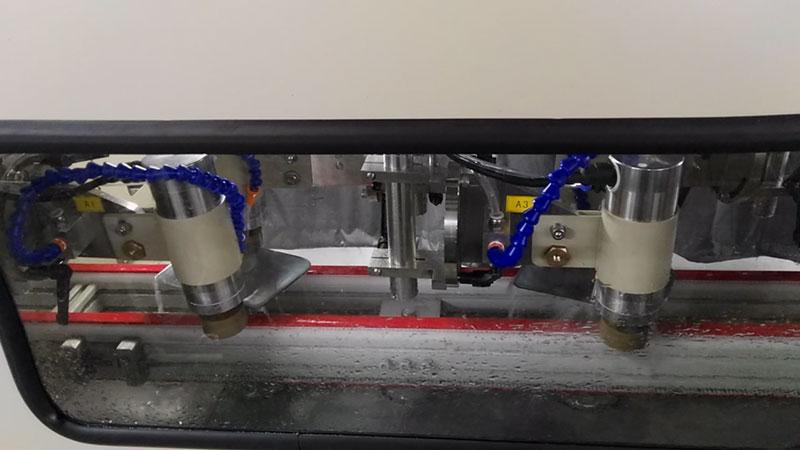

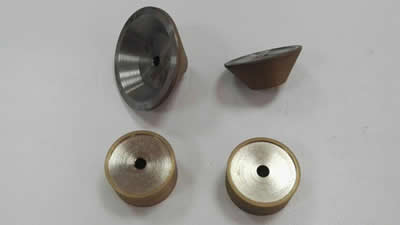

1. The grinding wheel pressure device and clamping device are both specially designed in order to achieve a smooth grinding performance and no edge breakage.
2. The car rear view mirror edge chamfering machine uses a water resistant liquid-ring vacuum pump and stainless steel circulating water tank. The chassis and components that come into contact with the water are made of 304 stainless steel and erosion resistant material. The bearing is also made of stainless steel, ensuring a long term, rust resistant performance.

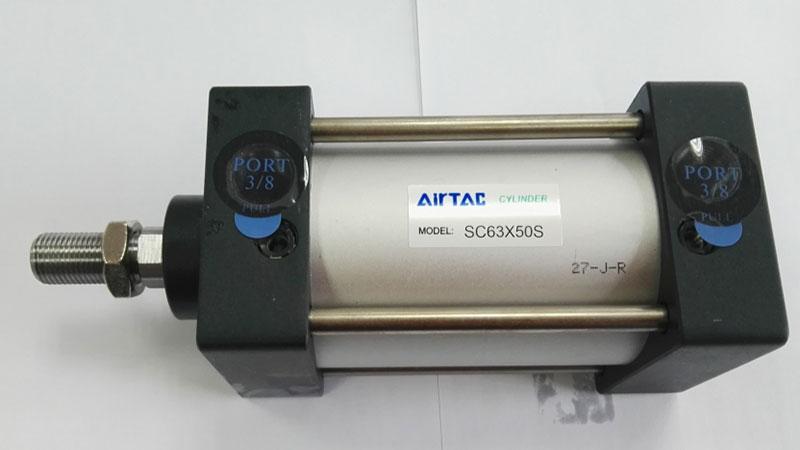

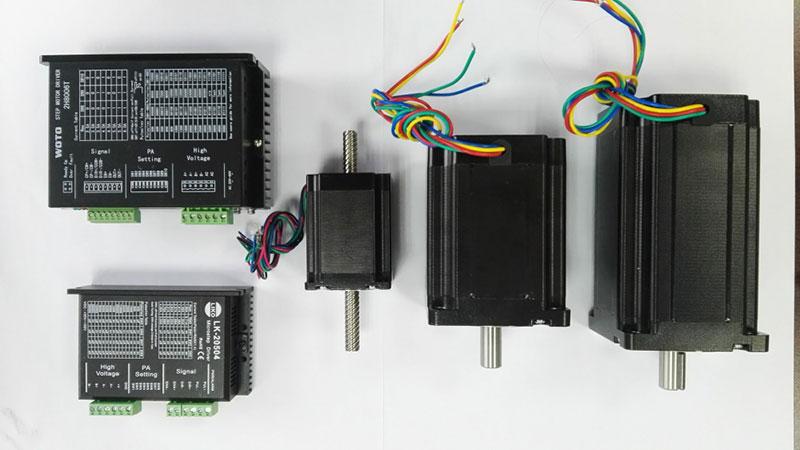

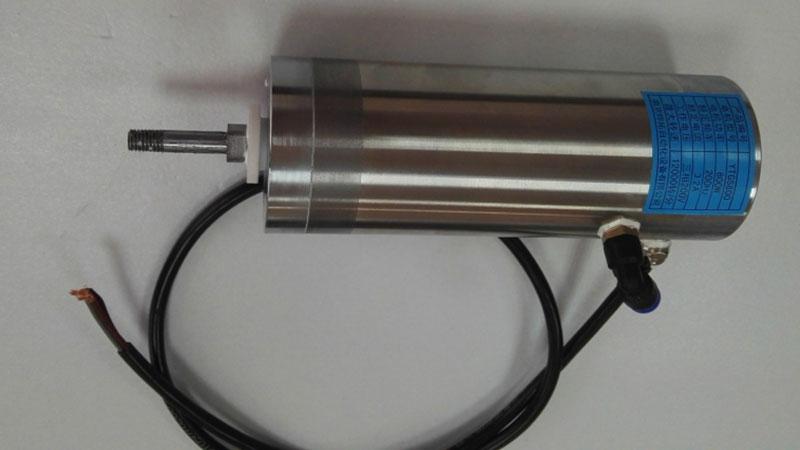

3. The main electrical and pneumatic components are sourced from internationally known brands, including Schneider, SMC and Yaskawa. The use of a high speed grinding motor also ensures a reliable quality and work stability.
4. The special design of the man to machine interface engineering, complete protection functions and easy operation and maintenance ensures a better performance of the equipment.
Besides the car rear view mirror edge chamfering machine, Yetuo offers wide range of glass processing equipment for glass cutting, glass edging, glass washing, etc. Our company has complete equipment to manufacture quality automatic glass machinery for making lots of mirrors and glass.
